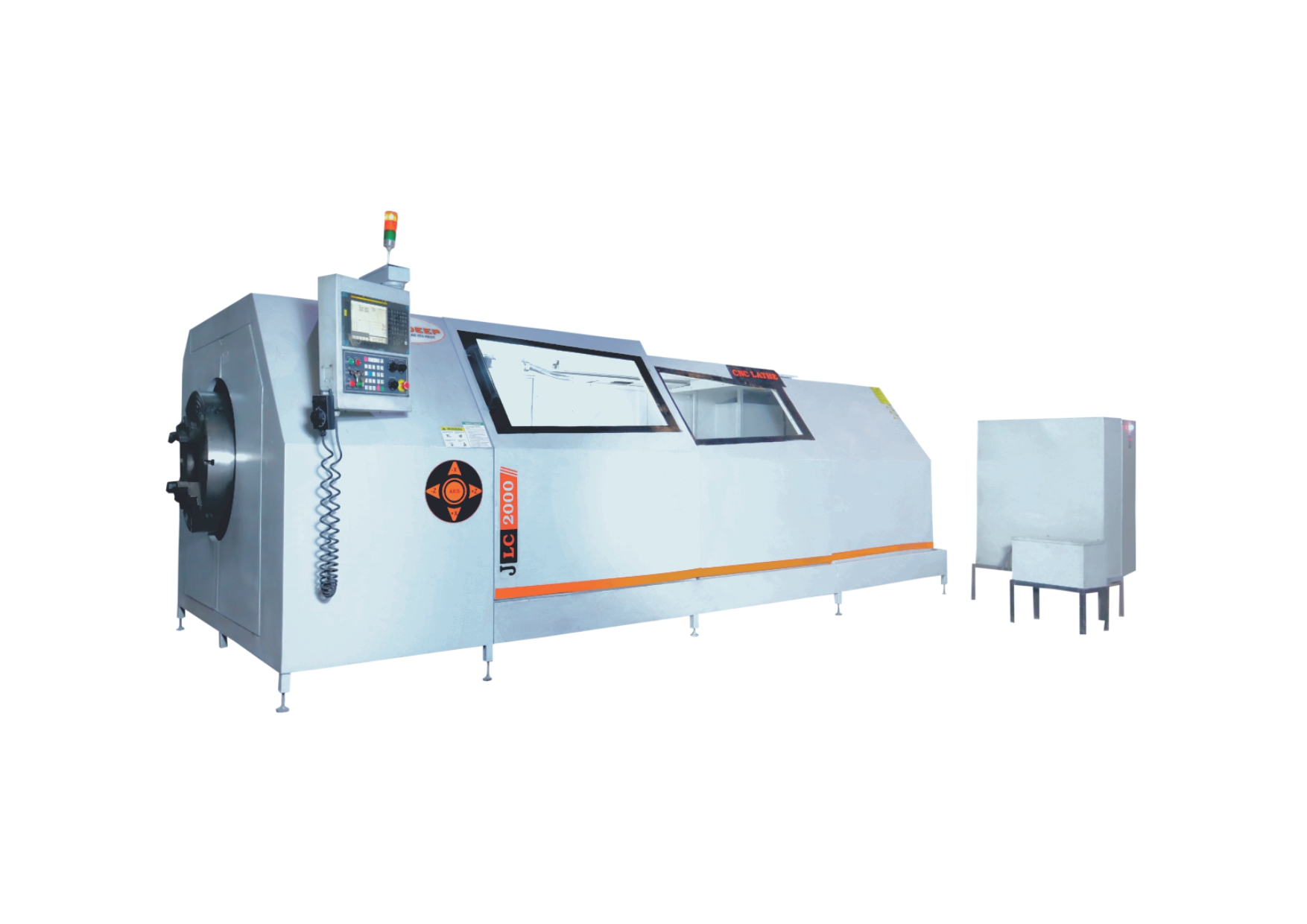

CNC Lathe Machine

Jagdeep CNC Heavy-Duty Lathe Machines are known for reliable performance. Developed after many years of experience and manufactured in house for total quality control with graded casting as per IS standards and high-quality components.

Technical Specification of CNC Lathe Machine

Capacity
Centre Height* mm 300 300 400 400 450 450 500 500 700 700 700
Width of Bed* mm 375 375 450 450 510 510 560 760 760 760 760
Swing Over Bed* mm 600 600 800 800 900 900 1000 1000 1400 1400 1400
Swing over Cross Slide mm 325 325 530 530 610 610 660 660 1000 1000 1000
Admit Between Centre / Maximum Turning Length* mm 1000 2000 1000 2000 2000 3000 2000 3000 3000 4000 5000
Slides
X-Axis Travel (Cross) mm 180 180 2850 285 325 325 350 350 520 520 520
Rapid Feed (X & Z axis) m/min 2 2 2 2 2 2 2 2 2 2 2
Main Spindle
Spindle Motor Power - Siemens* Hp 15 20 15 20 20 25 20 25 30 35 35
Spindle Speed Range* rpm 50-500 50-500 30-300 30-300 30-300 30-300 20-200 20-200 15-150 15-150 15-150
Spindle Bore* mm 65 65 90 90 105 105 105 105 105 105 105
Turret
Number of Station* 4 4 4 4 4 4 4 4 4 4 4 4
CNC System FANUC/Siemens

*Other large/customized configurations can be manufactured as per requirement.
*We also manufacture CNC Oil-Country Lathe with Bigger Spindle Bore for pipe/drill machining.

Standard Accessories

Main Motor with VFD
4 Station Manual Turret
Dead Centre
Tail Stock
Dog Chuck
Tower Light
Work Light
Automatic Lubrication System
Coolant System
Machine Enclosure
Air Gun
Coolant Gun
Tool Kit
Foundation and Levelling Bolts

Optional Accessories

Chip Conveyor
