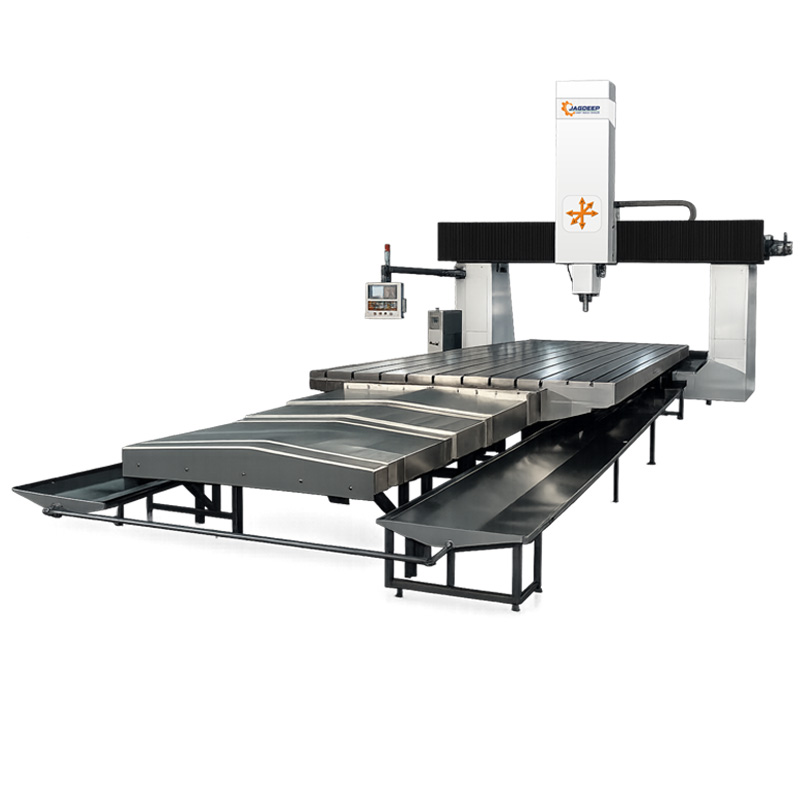

Technical Specification of Plano Miller Machine
| Model No. |
JPM-120
|
JPM-150
|
JPM-180
|
JPM-210
|
JPM-250
|
JPM-300
|
| Length of Stroke |
1800 to 15000 as per Order/requirement
|
|||||
| Width between Columns |
1200
|
1500
|
1800
|
2100
|
2500
|
3000
|
| Height under Cross Rail |
1200
|
1500
|
1500
|
1500
|
1500
|
1500
|
| Face of Cross Rail |
450
|
450
|
550
|
600
|
650
|
700
|
| Face of Columns |
325
|
325
|
450
|
500
|
500
|
500
|
| Width of Table |
875
|
1050
|
1200
|
1400
|
1500
|
1800
|
| No. of Table Feeds |
Stepless Infinitely Variable Speeds with AC Variable Frequency Drive
|
|||||
| Table Feed for Milling per Minute |
40 to 200
|
|||||
| Table Repaid feed per minute |
600
|
|||||
Driving Unit of Table available in Screwdrive & Gear Drive or Worm Drive
1. Specification of bigger size can be hand on request.
2. We also manufacture planning machines in belt driven as well as geared type.
Note: Since the result of most modern research and development are being. Constantly applied to our machines, illustrations, constructional details and technical data given here can be changed for improvement.
