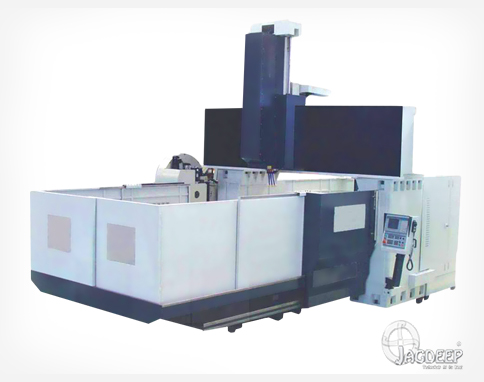

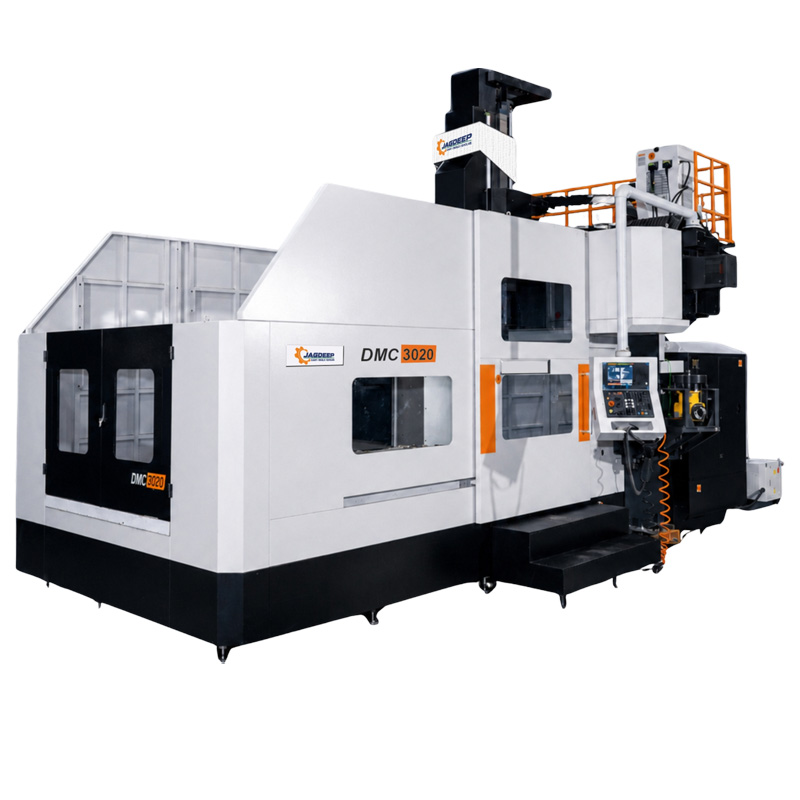

CNC Double Column VMC Machine

Jagdeep CNC VMC (Vertical Machining Centre) is used for complex machining operations and production jobs. Jagdeep VMC is known for reliability and best after sales service & support. Completely designed & developed in-house with high quality parts & components for reliable and consistent operations.

Technical Specifications of CNC Double Column VMC

Models 2015 DMC 3015 DMC 3020 DMC 4020 DMC
Table Units
Table Size MM 2000x1500 3000x1500 3000x2000 4000x2000
T-slot size 22 22 22 22 22
Dist. From Floor to Table 920 920 920 920 920
Max. Load on Table Kg 5000 6000 10000 15000
Distance Between Column MM 1700 1700 2200 3200
Capacity
X-Axis Travel MM 2200 3200 3200 4200
Y-Axis Travel MM 2200 3200 3200 4200
Z-Axis Travel MM 800 800 800 800
Dist. From Spindle Face to Table (Min/Max.) MM 200/1000 200/1000 200/1000 200/1000
Rapid Traverse(x/y/z) M/Min 10/10/10 10/10/10 10/10/10 10/10/10
Cutting Feed Rate M/Min 10 10 10 10
Main Spindle
Spindle speed RPM 3000/600 3000/6000 3000/6000 3000/6000
Power KW 22/26 22/26 22/26 22/26
Spindle Taper BT-50 BT-50 BT-50 BT-50
Automatic Tools
No. of Tools 20 20 20 20
Tool Length Max. 300 300 300 300
Accuracy
Positioning Accuracy/300 MM + 0.015 + 0.015 + 0.015 + 0.015
Repeatability + 0.006 + 0.006 + 0.010 + 0.010

Standard Features

  • AC Servo Spindle Motor, with Servo Drive
  • Spindle (Taiwan)
  • Coolant System
  • Coolant Gun
  • Air Gun
  • Automac Lubricaon System
  • Electricals Panel
  • Work Light & Tower Light
  • Fanuc CNC System
  • Machine Enclosures

Optional Accessories

  • Chip Convyor
  • Linear Glass Scale for Axes
  • Collent Through Spindel
  • ATC (32/40/60/90)
  • Extra Day Light
  • Oil Mist Collector System
  • 90 Deg. Head / Universal Head
  • Rotary Table
  • Tool Probe
  • 2 Speed Gear-Box for Spindle
  • Machine Enclosures

Application/Industries

  • Die Machining
  • Bolster Plates
  • Turbine Blade Machining
  • Casting/Forging Induatries

Operations

  • Facing
  • Boring/Drilling/Tapping/Threading
  • Profile Machining
  • Milling/Slotting

*Other large/customized configurations manufactured as pe requirement.
